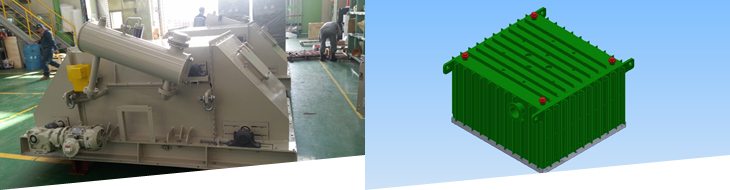

Suspended Magnetic Separator

Suspended Separator

The separator is used for separating/sorting ferrous metal (magnetic material) in processing goods transferred to conveyor belts. The separator is suspended over a conveyor and various models and options are available depending on field conditions.

Electromagnet type

HANKOOK MATICS' suspended electromagnetic separators are manufactured based on optimized magnet design by using electromagnetic analysis software according to conditions (the speed of a conveyor, width, the height and load of processing goods) of installation locations.
The electromagnet type is capable of high absorption power compared to a permanent electromagnet type, and thus can remove various magnetic materials.

  • Oil cooling
    The most common structure which has electrical insulating oil for cooling the electromagnet coil.
  • Dry cooling
    It does not require oil as it performs conductivity cooling. Dry cooling enables convenient maintenance compared to the oil cooling and it can be used for area restricted the use of flammable insulation oil.
Please see our youtube channel to see operation videos. Go to YouTube
