Magnetic Pulley

Magnetic Pulley

This magnetic pulley is installed with magnet inside the head pulley to separate magnetic materials of raw materials, while transferring from a conveyor to a belt. The pulley is designed in the same way as general head pulleys for easy installation. Pulleys can be manufactured in an electromagnet type or a permanent magnet type.

Electromagnet type

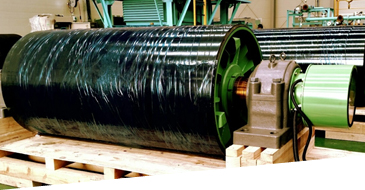

Electromagnetic Pulley is applied copper coil electromagnet to generate very strong magnetic field to entire surface of pulley. Compared with a permanent type, Both large and small tramp metal can be removed at high burden depth with much deeper absorption power.
Hankook Matics’s Electromagnetic Pulley is highly recommended to use for very difficult ferrous metal separation with other magnetic separators such as fast conveyor speed, high burden depth, and high-capacity. There are various size and options according to customer’s demands and site conditions.

Please see our youtube channel to see operation videos. Go to YouTube
